PVC CONDUIT FITTINGS

PVC Rigid Conduit Fittings as per IS 3419 Part 2

Atul PVC conduit pipe fittings are moulded from high-quality PVC resin. Conduit fittings are used in electrical installations to connect and secure PVC conduit pipes. Conduit pipe fittings are essential in order to ensure proper connection and routing of wires. All our fittings are manufactured as per IS 3419.

PVC Bend

High-grade flexible PVC conduit engineered for fast installation, reliable
insulation, and long service life in demanding electrical applications.

Colors available

  • Ivory

  • Black
KNOW MORE
Dimension of PVC Bend
Sizes Outside diameter Min. inside diameter (bend) Inside diameter (collar D3 Radius Length from center (Y) Collar length (L2)
20 MM 19.70–20 mm 16.9 mm 20.1–20.3 mm 65 mm 115 mm 35 mm
2 25 25 24.6 22.10 21.40 20.60
3 32 32 31.6 28.60 27.80 26.60
4 40 40 39.6 35.80 35.40 34.40
5 50 50 49.5 45.10 44.30 43.20

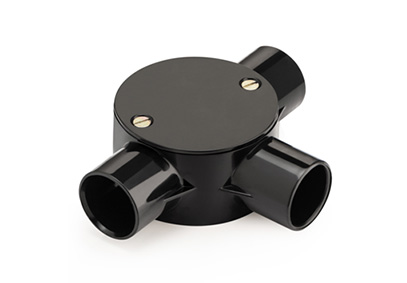

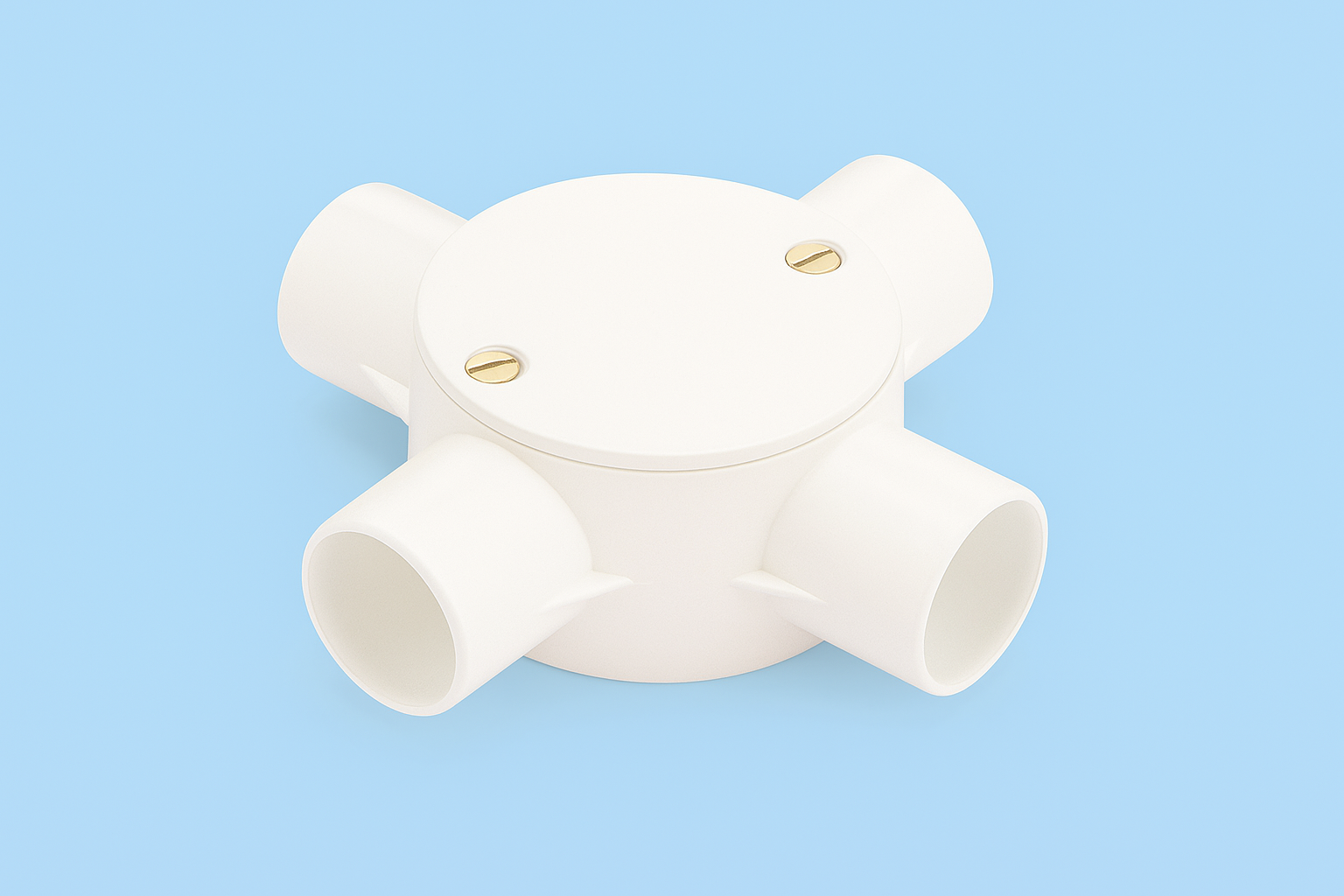

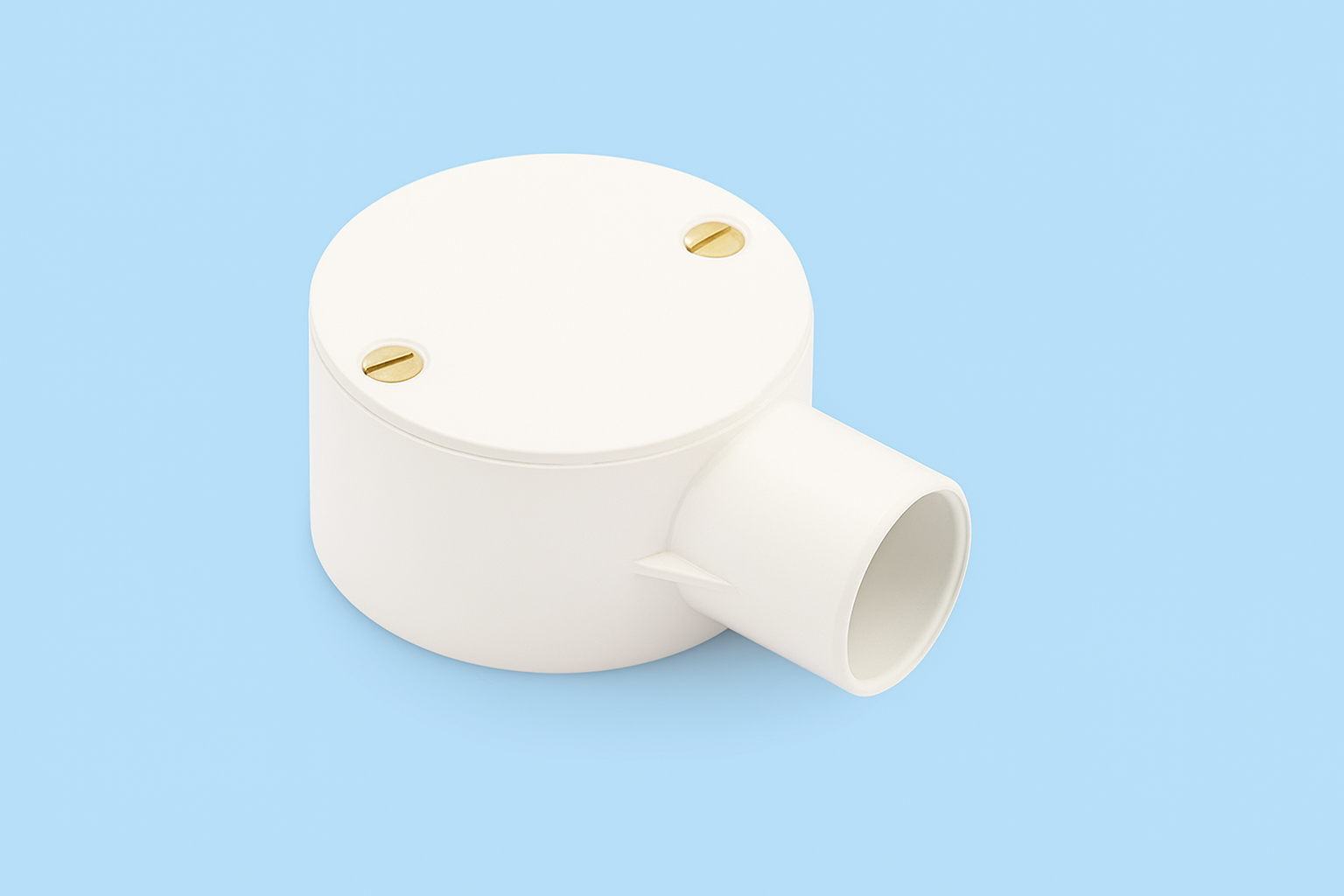

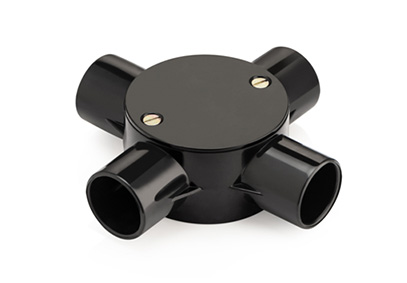

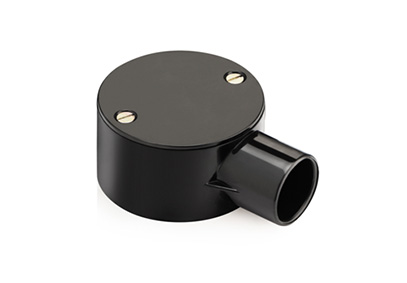

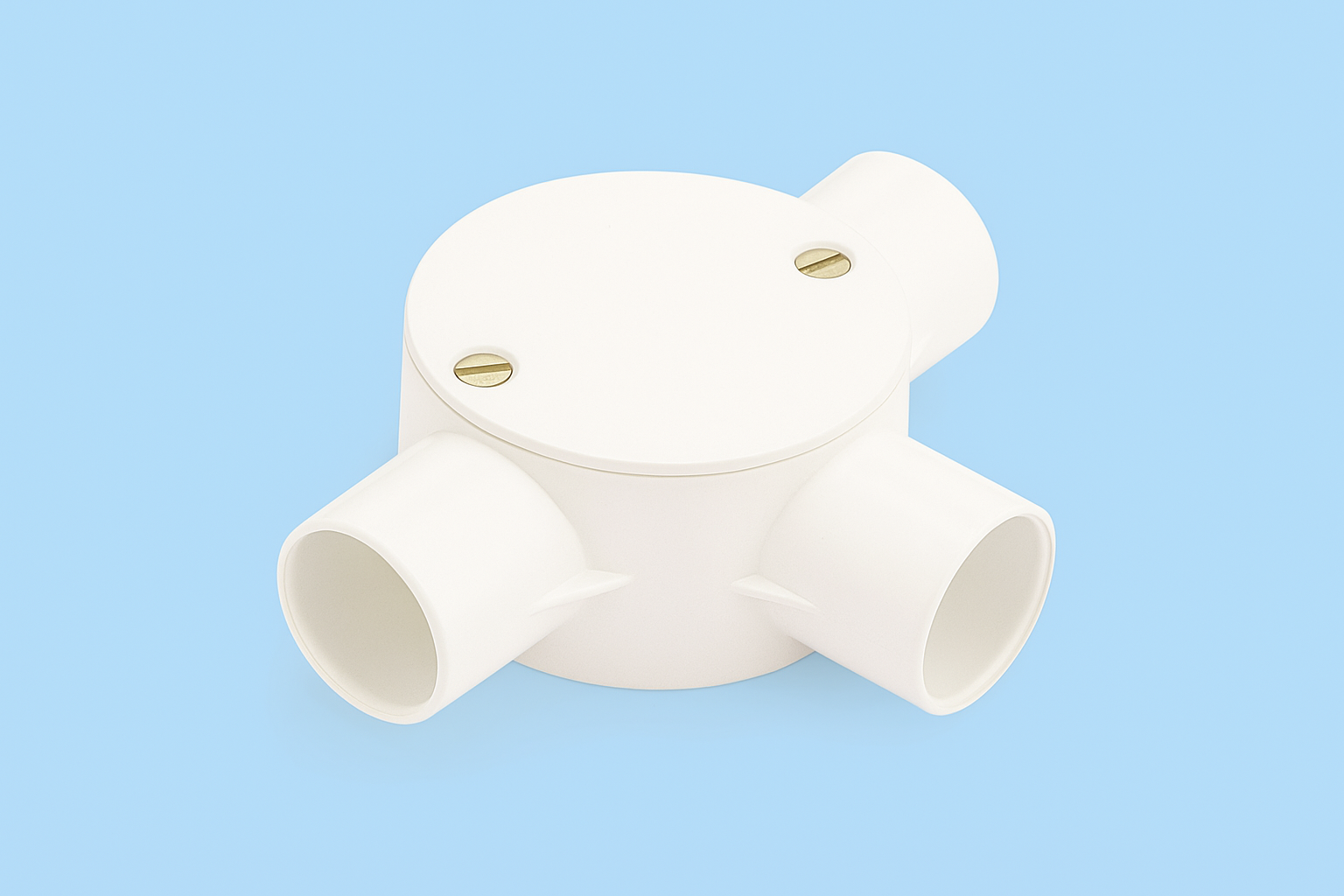

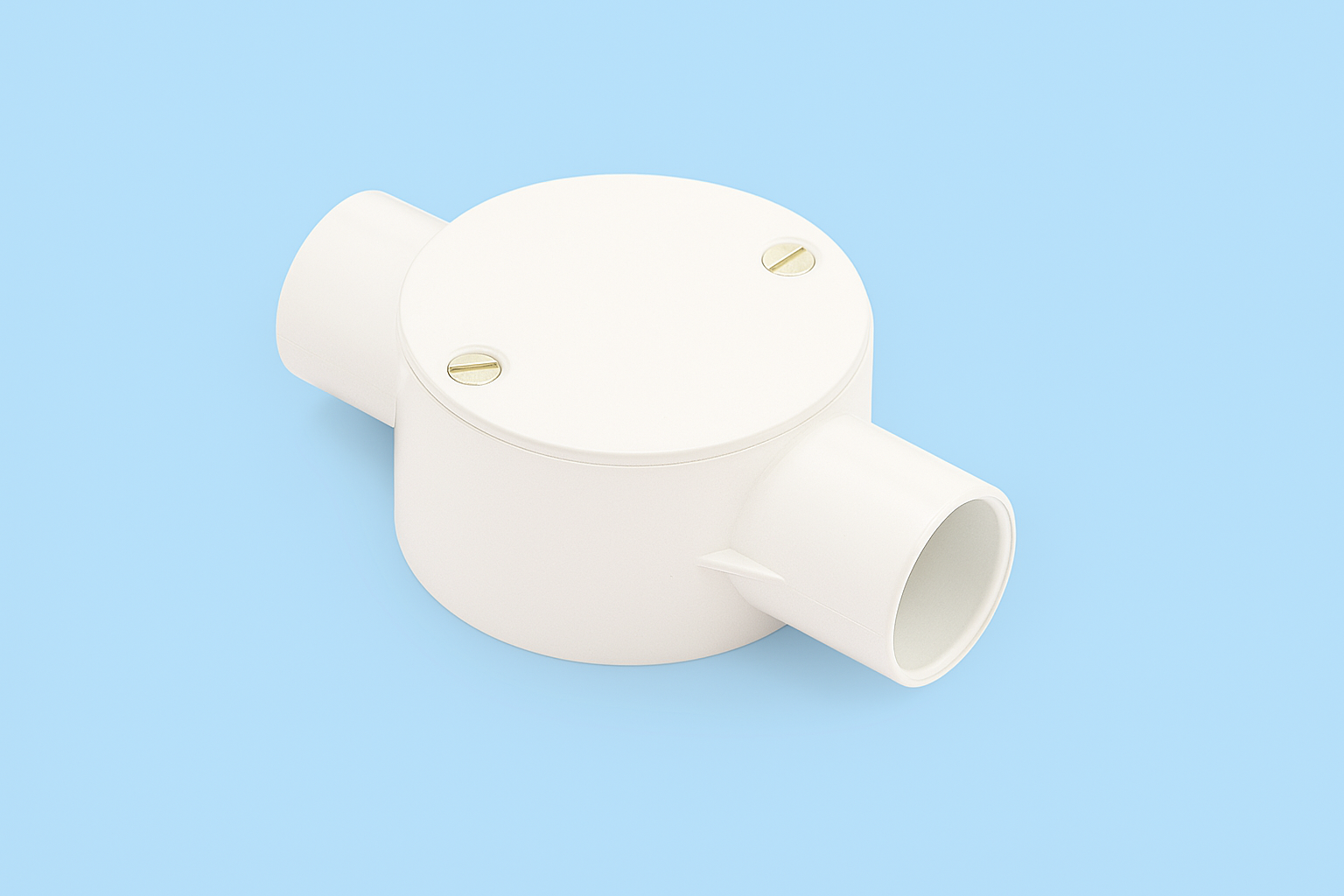

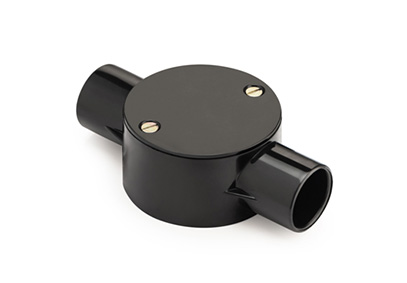

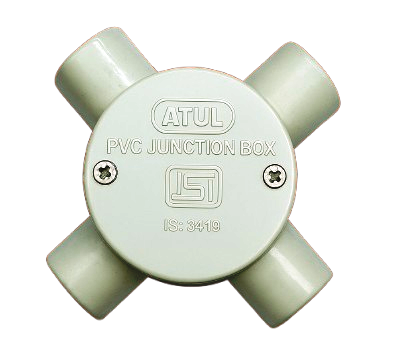

Surface Junction Box

(With screw and lid) – Designed for safe and secure electrical conduit terminations, our junction boxes provide superior durability and compliance with IS standards.

Colors available

  • Ivory

  • Black
Ivory / Black Colour
Dimension of Surface Junction Box
Sizes Outside diameter Min. inside diameter (bend) Inside diameter (collar D3 Radius Length from center (Y) Collar length (L2)
20 MM 19.70–20 mm 16.9 mm 20.1–20.3 mm 65 mm 115 mm 35 mm
25 MM 25 25 24.6 22.10 21.40 20.60
30 MM 32 32 31.6 28.60 27.80 26.60
40 MM 40 40 39.6 35.80 35.40 34.40
50 MM 50 50 49.5 45.10 44.30 43.20

All Categories

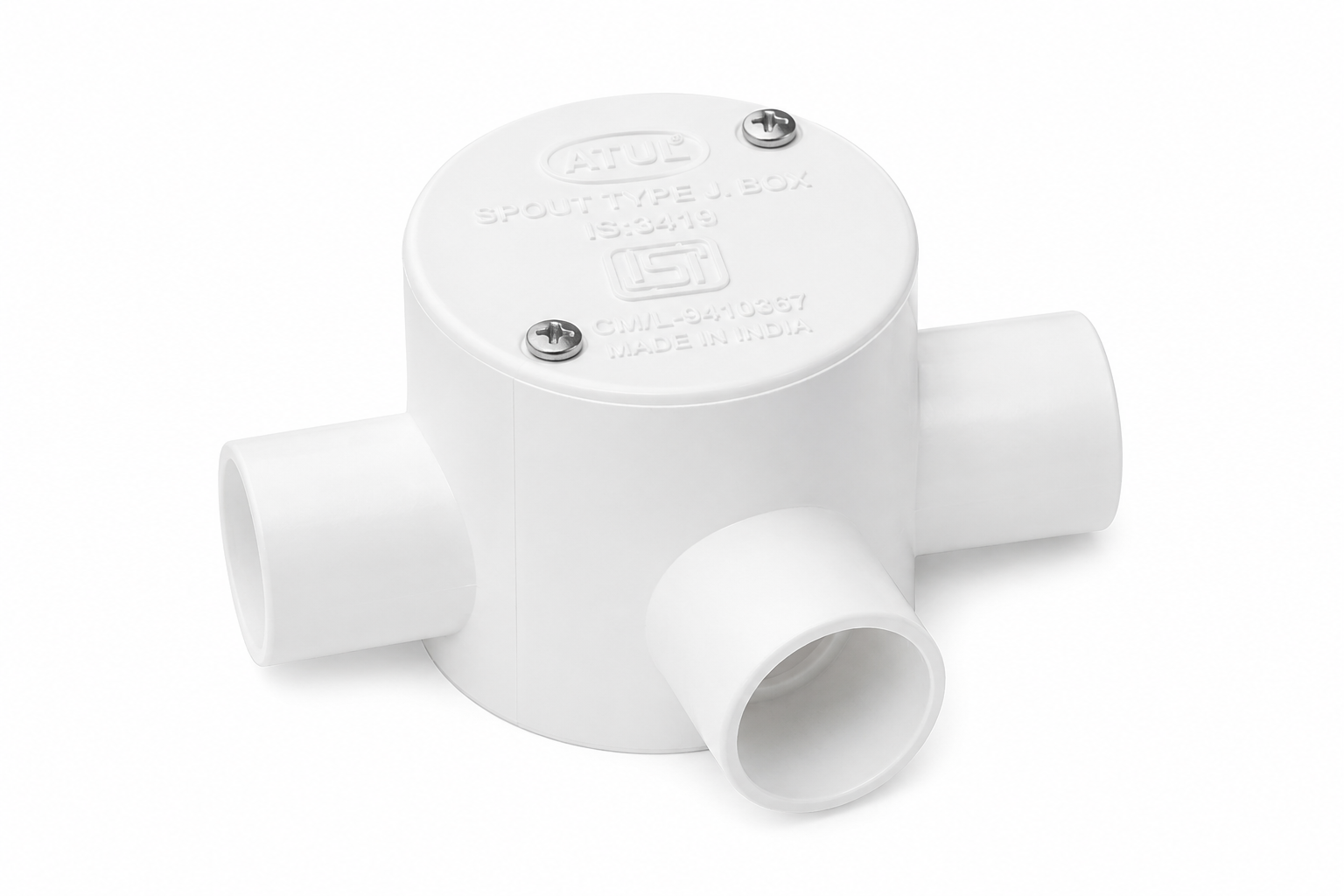

Deep Junction Box

(With screw and lid) – Designed for safe and secure electrical conduit terminations, our Deep junction boxes provide superior durability and compliance with IS standards.

Colors available

  • Ivory

  • Black
Ivory / Black Colour
Dimension of Deep Junction Box
Sizes Outside diameter Min. inside diameter (bend) Inside diameter (collar D3 Radius Length from center (Y) Collar length (L2)
20 MM 19.70–20 mm 16.9 mm 20.1–20.3 mm 65 mm 115 mm 35 mm
2 25 25 24.6 22.10 21.40 20.60
3 32 32 31.6 28.60 27.80 26.60
4 40 40 39.6 35.80 35.40 34.40
5 50 50 49.5 45.10 44.30 43.20
